All Pumps › 7" Pump with 6" Motor (Janta Submersible Model)

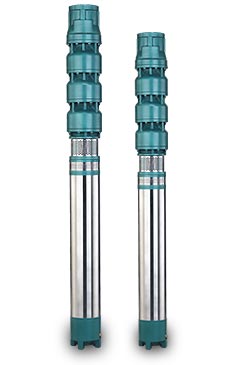

F-Tech's 7" Submersible Pump with 6" Submersible Motor are available in size up to 25 H.P. with flows upto 2200 LPM. V6/V7 submersible pump is ideal for agriculture use, lift water from canals & wells, etc.
Features of V6 - V7 (Janta Model) Submersible Pumps
- Superior material of construction.
- Light weight and compact.
- Lip seal and sand guard to prevent ingress of impurities into the motor.
- Easy assembling, dismantling.
- Both pump and motor are fully serviceable and utilize stainless steel, brass and noryl components for longer life.
Application of V6 - V7 (Janta Model) Submersible Pumps
7" borewell submersible pump with 6" submersible motor is designed for applications like:
- Water supply to high-rise buildings, hospitals, raw houses.
- Agriculture & Irrigation Systems.
- Water Supply from Canals, Dams, etc.
- Housing Complexes, Bunglows.
Material of Construction - 7" Submersible Pumps
Name of Parts | Material Used |
---|---|
Pump Shaft | Stainless Steel |
Bearing Bushes | Leaded Bronze /Teflone and Stainless Steel Jacket with Nitrile |
Diffuser | Cast Irons |
Impeller | Stainless Steel 410 |
Suction Bracket | Cast iron |
Outlet | Cast iron |
Hardware | Stainless Steel |
Material of Construction - 6" Submersible Motor
Name of Parts | Material Used |
---|---|
Shaft | Stainless Steel 431 / 410 |
Bearing Bushes | Leaded Bronze |
Thrust Bearing | SS Seagment & Teflon Thrust Plate |
Housing | Cast Iron |
Base | Cast Iron |
Connection Piece | Cast Iron |
Copper | Special EC Grade As Per IS Standards |
Stator Shell | Stainless Steel |
Operating Limitation - 7" Submersible Pump with 6" Submersible Motor
PARAMETERS | Operating Range |
---|---|
H.P. Range | 6.0 H.P. to 25.0 H.P. |
Head Range | Upto 70 Meters |
Discharge at Duty Point | 1100 to 1700 L.P.M. |
Maximum Discharge | 2200 L.P.M. |
Operating Voltage | 350 - 440 Volt Three Phase |
Maximum Temperature of Liquid | 40° C |
Maximum permissible amount of sand in water | 50 Grams/Cubic Meter |
Maximum Voltage Fluctuation | +15% -20% |
Version | Three Phase From 4.5 kW to 18.75 kW, 415 Volt 50 Hz |
# Due to continuous efforts in improvements, information furnished above is subject to change without notice
